A 16-LC-TT
Manufacturer:
Assmann WSW Components
Mfr.Part #:
A 16-LC-TT
Datasheet:
Description:

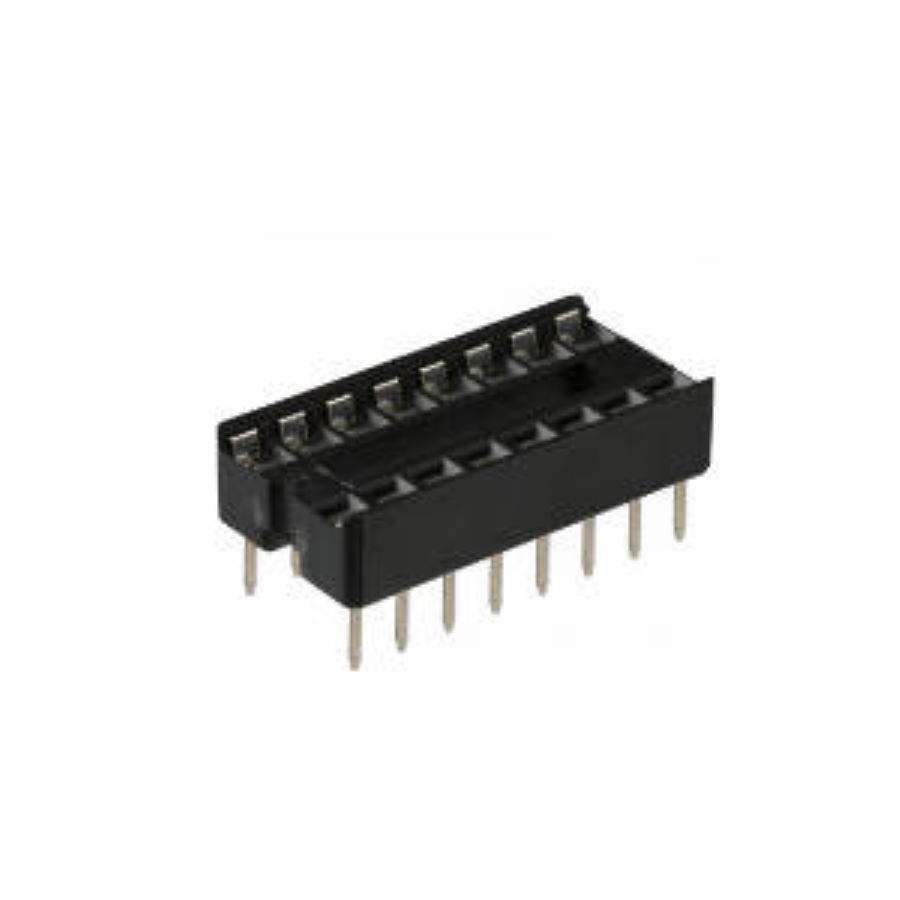

IC and Component Sockets Through Hole DIP, 0.3" (7.62mm) Row Spacing Number of Positions:16 (2 x 8) Pitch:2.54 mm Row Spacing:7.62 mm
| Parameter | Value |
|---|---|
| Length | 20.32 mm |
| Width | 9.91 mm |
| Termination | Solder |
| Max Operating Temperature | 85 °C |
| Min Operating Temperature | -55 °C |
| Number of Pins | 16 |
| Height | 5.1 mm |
| Material | PBT |
| Packaging | Tube |
| Voltage Rating | 60 V |
| Depth | 5.1 mm |
| Lead Free | Lead Free |
| RoHS | Compliant |
| Contact Plating | Tin |
| Lead Length | 3.1496 mm |
| Contact Material(Contact Finish) | Bronze |
| Pitch | 2.54 mm |
| Current Rating | 1 A |
| Flammability Rating | UL94 V-0 |
| Orientation | Vertical |
| Number of Contacts | 16 |
| Connector Type | DIP, 0.3" (7.62mm) Row Spacing |
| Number of Positions | 16 (2 x 8) |
| Row Spacing | 7.62 mm |
| Housing Material | PBT |
| Contact Resistance | 30 mΩ |
| Contact Finish - Mating | Tin |
